PRODUCT DETAILS
PRODUCT DESCRIPTION
- High system efficacy up to 100lm/W
- Light without flicker reduce stress while working/living underneath
- Integrated IC constant DOB driver, CE compliant, safe and reliable
- Up to 50% energy saving compared to conventional downlight
- High-quality engineering plastic, high strength and fearless turning yellow
- With SIRIM certified
TECHNICAL DATA
| Electrical parameters | |
| Rated Voltage | 170-240V~ |
| Rated Frequency | 50/60Hz |
| Life Data | |
| Life Time | 15000h |
| Operation Data | |
| IP | IP20 |
| Working Temperature | -20°C~+40°C |
| Mechanical Data | |
| Housing Material | Plastic |
| Model | Watts (W) | PF | Luminous Flux (lm)
(3000K/ 4000K&6500K) |
Beam Angle | CRI | Dimension (mm) |
| MXTL1033-Y/15W | 15W | 0.5 | 1350/1500 | 120° | ≥80 | Ø180*35 |
| MXTL1033-Y/24W | 24W | 0.5 | 2160/2400 | 120° | ≥80 | Ø225*35 |
| MXTL1033-Y/30W | 30W | 0.5 | 2700/3000 | 120° | ≥80 | Ø250*35 |

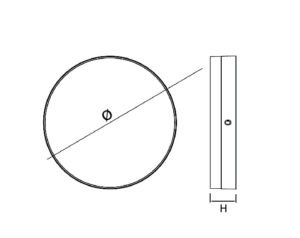

PRODUCT DIMENSION
| Model | Watts (W) | Diameter Ø(mm) | Height H(mm) |
| MXTL1045/15W | 15W | 180 | 35 |
| MXTL1045/24W | 24W | 225 | 35 |
| MXTL1045/30W | 30W | 250 | 35 |
APPLICATION
- Living rooms
- Offices
- Meeting rooms
- Retail stores
- Schools and institutions
COUNTRY-SPECIFIC INFORMATION
The Megaman LED Surface Panel Light MXTL1045 is compatible with Malaysia’s 220–240V electrical system, making it suitable for local installations.
Surface panel lights are widely used in Malaysia for homes, offices, and commercial spaces, especially where concrete ceilings or limited ceiling depth make recessed lighting difficult.
Megaman lighting products are trusted for their performance, durability, and energy efficiency in Malaysian environments.
