PRODUCT DETAILS
PRODUCT DESCRIPTION
- Sosen Driver, Philips LED Chips, 6KV Surge Protection
- Anti-UV, transmittance > 94%, PF 0.95
- Aluminum Die-casting technology by ADC12
- Excellent thermal management, reduce temperature
- High strength polycarbonate lens, achieve IK08
- Lightweight, impact resistant fixture
- With SIRIM certified
Datasheet:-LED HIGH BAY_YTHB006
TECHNICAL DATA
| Electrical parameters | |
| Input Voltage | 170-240V |
| Safety Class | Class I |
| Life Data | |
| Life Time | 50000h |
| Operation Data | |
| IP/IK | IP65/ IK08 |
| Operating Temperature | -10°C~+50°C |
| Storage Temperature | -20°C~+60°C |
| Mechanical Data | |
| Housing Material | Aluminum die-casting, Black Paint |
| Surface | PC |
Photoelectric Parameter
| Model | Watts (W) | Luminous Flux (lm)( 6500K) | Beam Angle | CRI | Dimension (mm) |
| YTHB006/100W | 100W | 22500 | 90° | ≥80 | Ø270*158 |
| YTHB006/200W | 200W | 30000 | 90° | ≥80 | Ø295*162 |
| YTHB006/240W | 240W | 36000 | 90° | ≥80 | Ø315*165 |

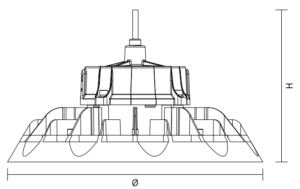

PRODUCT DIMENSION
| Model | Ø(mm) | H(mm) | Net Weight (kg) |
| YTHB006/150W | 270 | 158 | 1.7 |
| YTHB006/200W | 295 | 162 | 2 |
| YTHB006/240W | 315 | 165 | 2.15 |

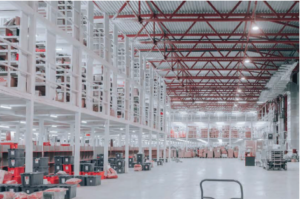

APPLICATION
- Warehouse
- Factory
- Exhibition Hall
- Logistic Center
- High Ceiling Lounge
COUNTRY-SPECIFIC INFORMATION
The Megaman YTHB006 is positioned as more than simply a high-output LED fixture. Its component selection and construction address several factors that matter in professional industrial lighting.
The combination of a Philips LED chip, Sosen driver, 6KV surge protection, PF 0.95, ADC12 aluminium housing, IK08 impact resistance and high UV resistance makes it a compelling option for industrial and commercial lighting projects.
MEGAMAN also lists the YTHB006 within its Asia-Pacific product portfolio, alongside its broader professional luminaire range.
