PRODUCT DETAILS
PRODUCT DESCRIPTION
- Fire retardant PC shell, high strength, no yellowing
- Safety shutter and insulated plug-pin sleeves
- Individual neon switch
- Plug with fuse, complies with BS 1363/A
- Power cord complies with EN50525
- 1.25mm full copper wire
- With SIRIM certified
TECHNICAL DATA
| Electrical parameters | |
| Rated Power | 3250W |
| Rated Current | 13A |
| Voltage | 250V |
| Model | Description | Rated Rating | Length | Dimension (mm) |
| YT-PSA103 | 3 Way | 3*1.25mm² | 2M/5M | 208*67*25 |
| YT-PSA104 | 4 Way | 3*1.25mm² | 2M/5M | 262*67*25 |
| YT-PSA105 | 5 Way | 3*1.25mm² | 2M/5M | 316*67*25 |
| YT-PSA105U | 4 Way
& 2 USB & 1 TYPE-C |
3*1.25mm² | 2M/5M | 307*67*25 |
APPLICATION
- Home living rooms
- Bedrooms
- Office workstations
- Study areas
- Retail shops
- Computer setups
- Entertainment systems
COUNTRY-SPECIFIC INFORMATION

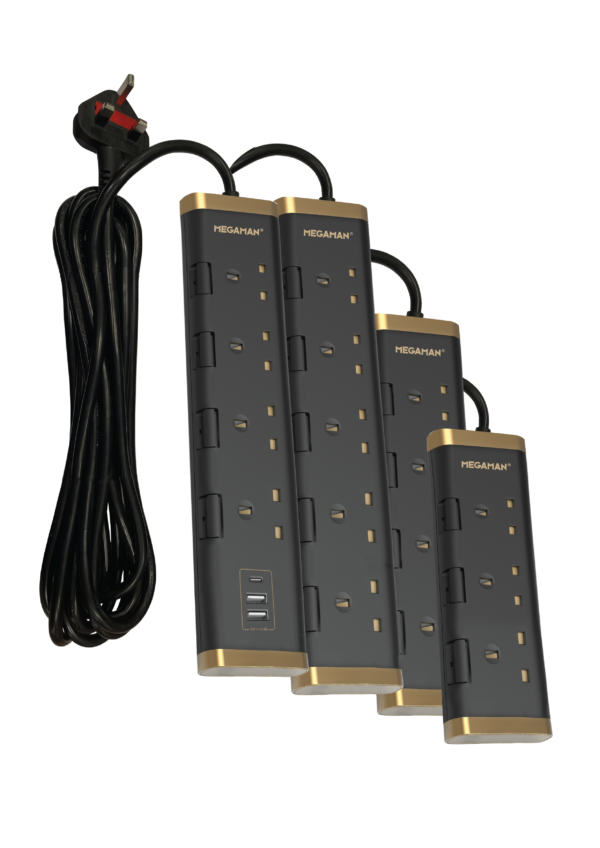

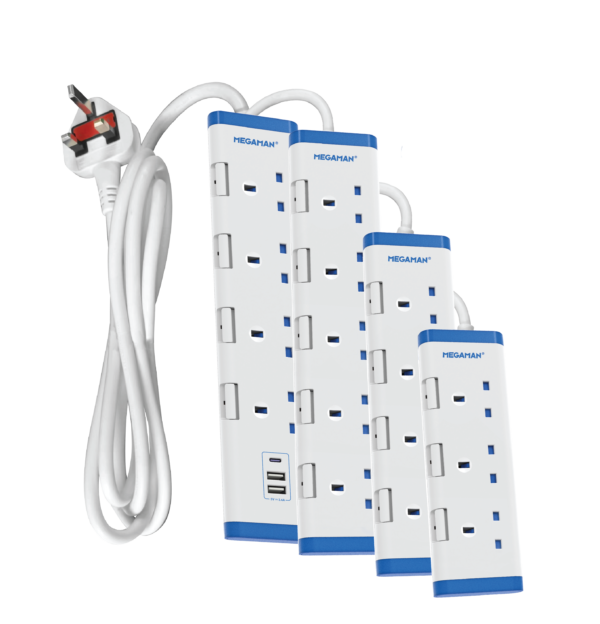

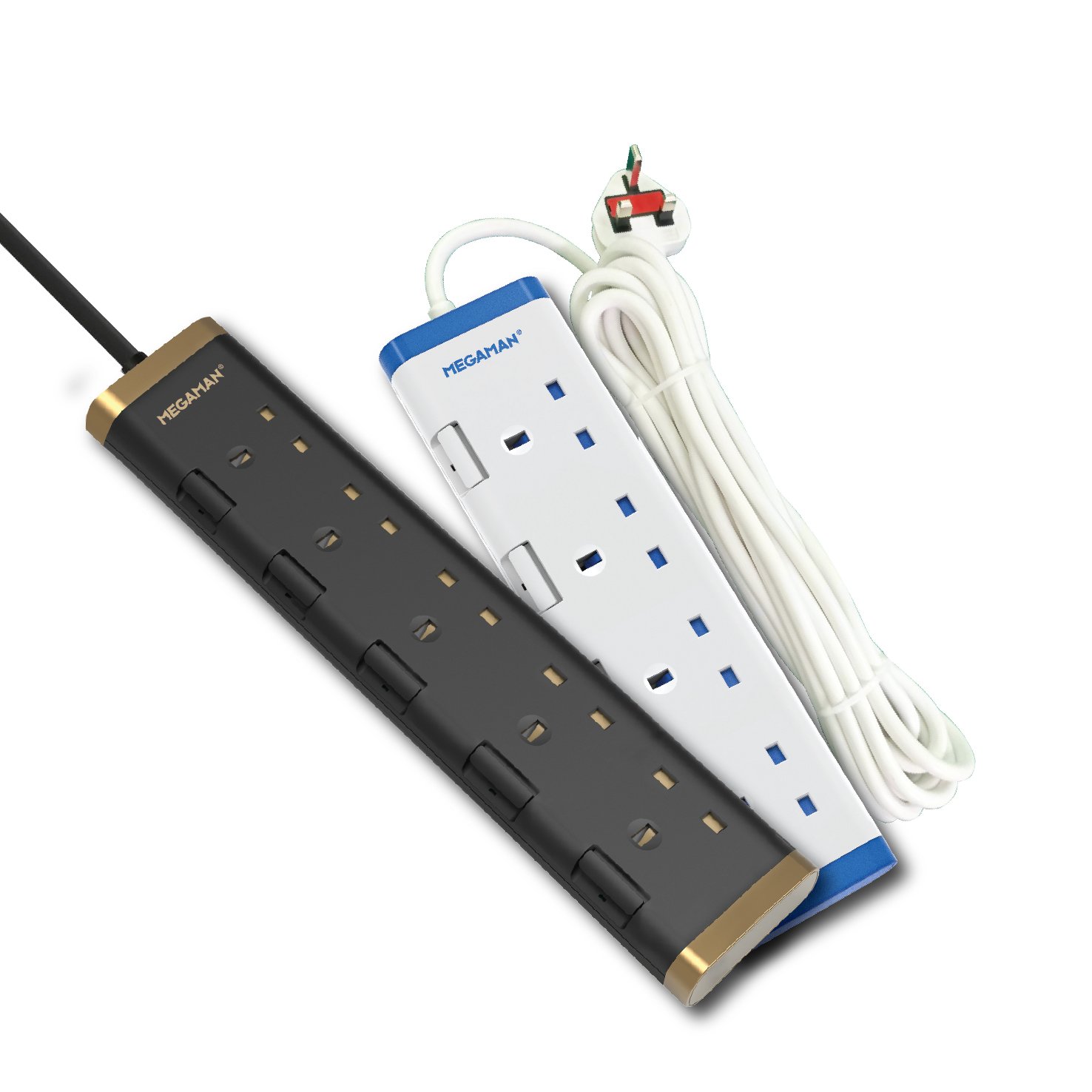

The Megaman Trailing Socket Series includes:
-
3-Way Trailing Socket
-
4-Way Trailing Socket
-
5-Way Trailing Socket
-
4-Way Trailing Socket with USB Output
Cable Length Options
-
2 Meter
-
5 Meter
These options allow users to choose the most suitable configuration based on their usage and space requirements.
The Megaman Trailing Socket with Surge & Neon is designed for Malaysia’s standard 25V electrical system, ensuring compatibility with local appliances and devices.
Trailing sockets are widely used in Malaysia for homes, offices, and retail environments, especially where multiple devices require convenient and safe power access.
