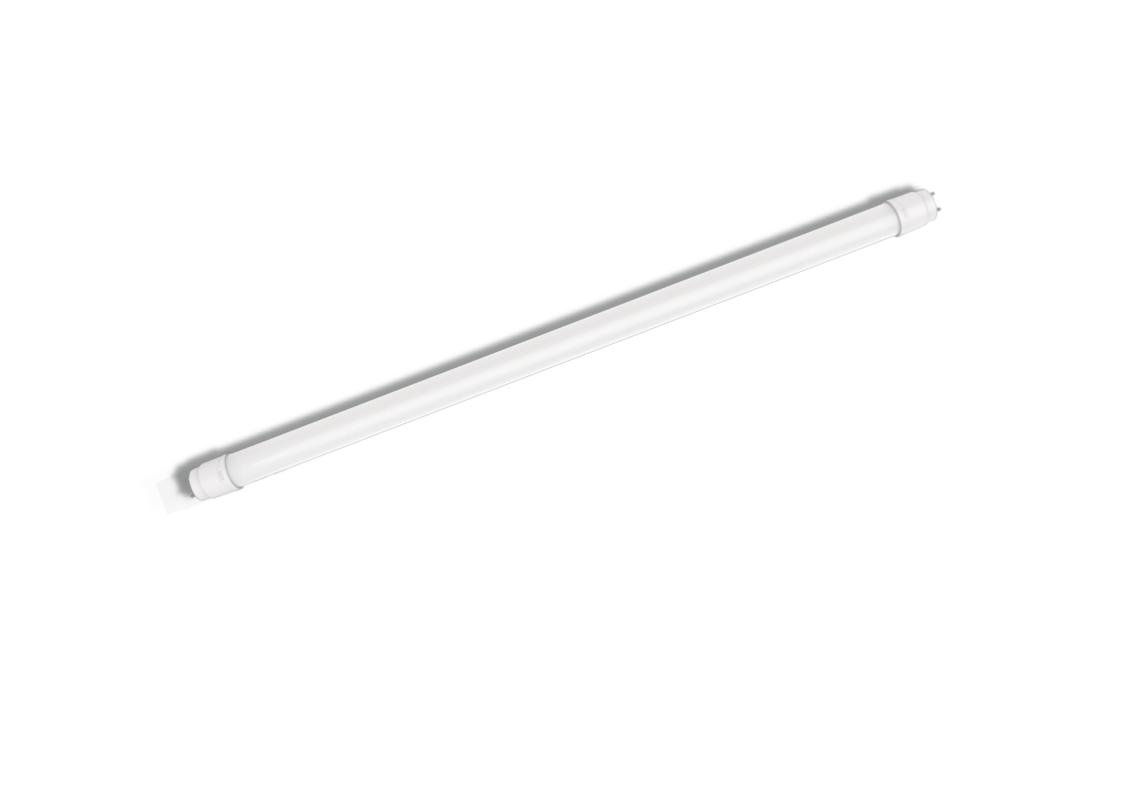

PRODUCT DETAILS
PRODUCT DESCRIPTION
- Glass tube, excellent heat dissipation performance

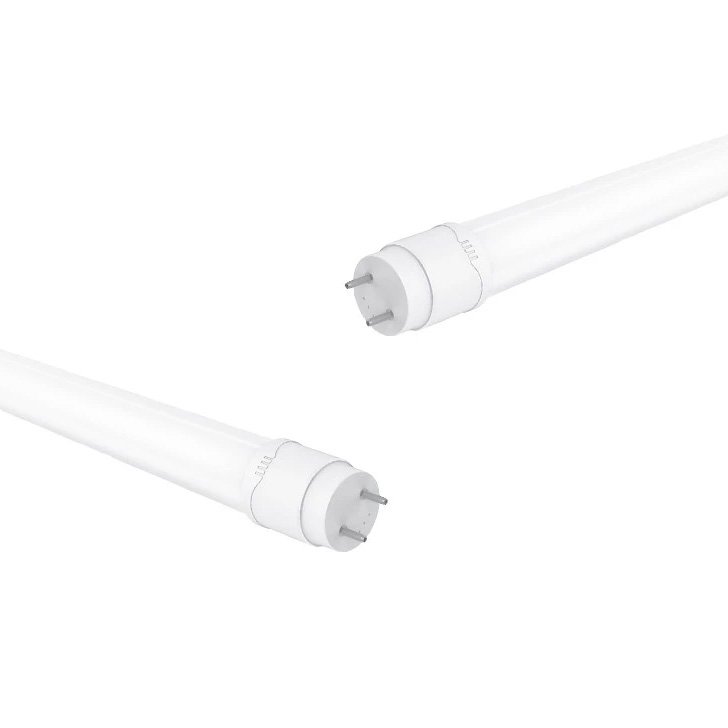

- Double-end input, suits for tube luminaires
- Uniform luminescence, big beam angle, perfect replacement of traditional T8 fluorescent
- High performance LED chips, high lumen efficiency and low light decay
- Flicker free, effectively protect eyesight
- Using independent isolated IC driver, with protection of over temperature, over voltage, short circuit, circuit break, safe and reliable
- No UV, infrared radiation, no mercury environmental protection
- High quality 2835 LED chips
- With SIRIM certified
TECHNICAL DATA
| Electrical parameters | |
| Rated Voltage | 220-240V~ |
| Rated Frequency | 50/60Hz |
| Input Mode | Double-end |
| Life Data | |
| Life Time | 15000h |
| Switch Times | <7500 |
| Operation Data | |
| IP | IP20 |
| Operating Temperature | -20°C~+45°C |
| Storage Temperature | -20°C~+60°C |
| Mechanical Data | |
| Tube Material | Glass |
| End Cap | PC |
| Other | |
| SDCM | <6 |
| Certification | CB/ROHS |
| Model | Watts (W) | PF | Luminous Flux (lm)(3000K/ 4000K&6500K) | Beam Angle | CRI | Cap | Dimension (mm) |
| YTT8Z1 9W | 9W | 0.5 | 800/850 | 200° | ≥80 | G13 | 598.8*30*30 |
| YTT8Z1 22W | 22W | 0.5 | 1900/2100 | 200° | ≥80 | G13 | 1199.4*30*30 |
| YTT8Z1 32W | 32W | 0.5 | 2900/3200 | 200° | ≥80 | G13 | 1199.4*30*30 |

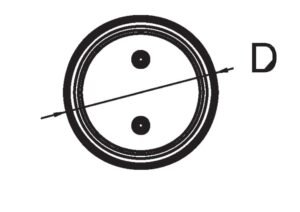

PRODUCT DIMENSION
| Model | A MAX (mm) | B MIN (mm) | B MAX (mm) | C MAX (mm) | D (mm) |
| YTT8Z1 9W | 589.8 | 594.5 | 594.5 | 604 | Ø30 |
| YTT8Z1 22W | 1199.4 | 1204.1 | 1206.5 | 1213.6 | Ø30 |
| YTT8Z1 32W | 1199.4 | 1204.1 | 1206.5 | 1213.6 | Ø30 |
DOCUMENTS AND CERTIFICATES

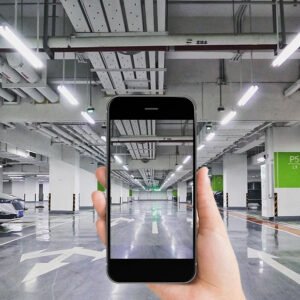

- Check the light using a phone’s camera. It’s flicker free. The light is bright and soft, without interrupted light and shadow
APPLICATION
- Supermarkets
- Shops

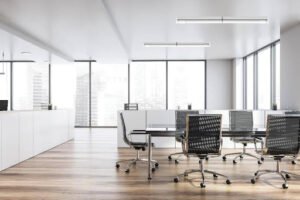

- Offices
- Factories
- Schools and classrooms
- Warehouses
- Parking areas
- Residential kitchens and garages
COUNTRY-SPECIFIC INFORMATION

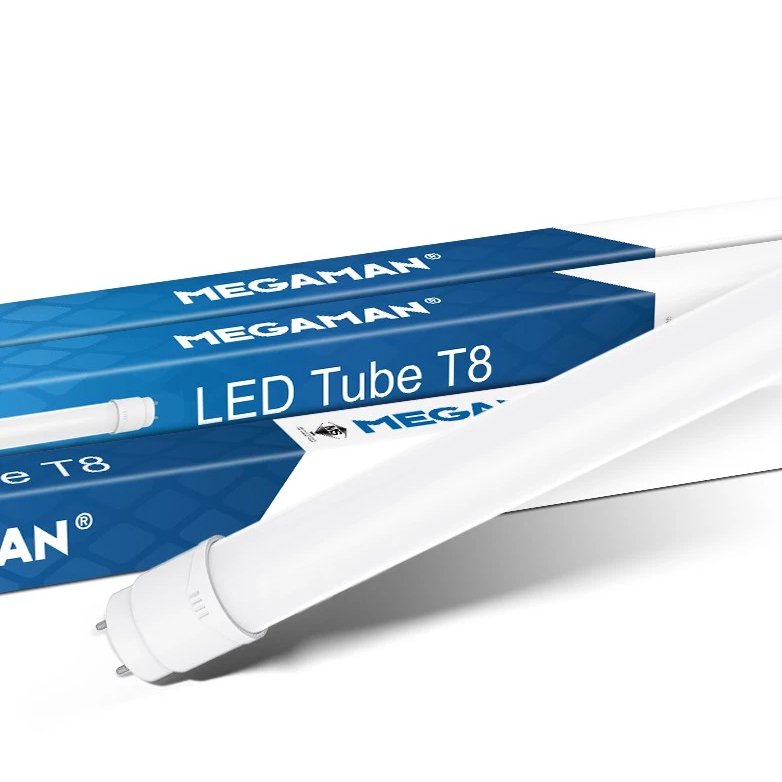

The Megaman LED T8 Tube is designed to operate with Malaysia’s standard 220–240V electrical system, making it compatible with most existing lighting installations.
LED T8 tubes are widely used across Malaysia in offices, schools, retail stores, and commercial buildings where efficient and reliable lighting is required.
Megaman lighting products are trusted by many Malaysian businesses and households due to their performance, durability, and energy efficiency.
