PRODUCT DETAILS
PRODUCT DESCRIPTION
- Double color-extrusion batten, integrated molding, more beautiful appearance
- High strength, not easy to bend

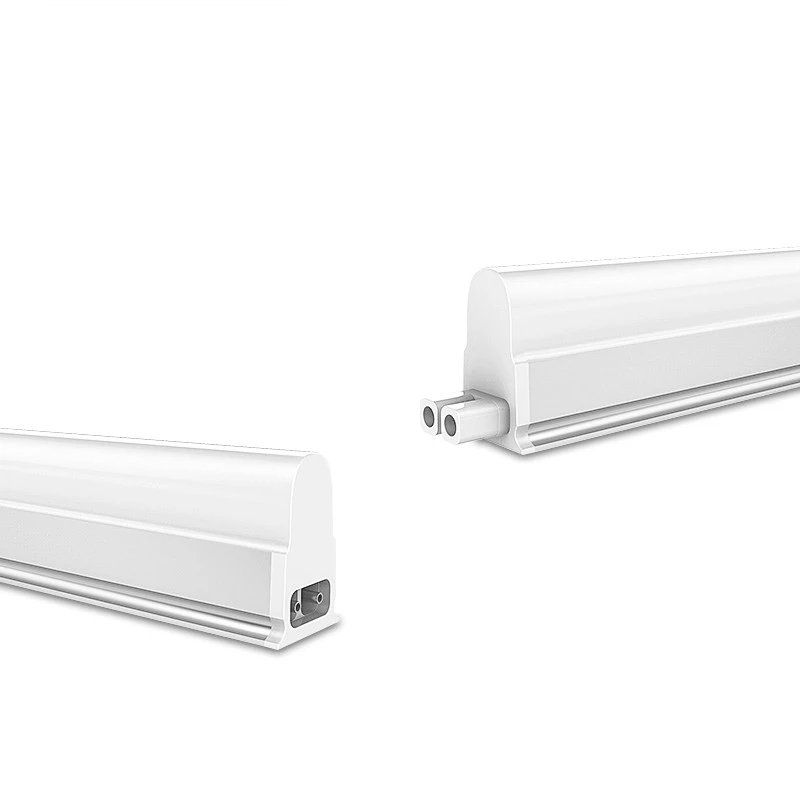

- Lamps can be connected to each other, there is no dark area at the connection and convenient installation
- Multiple sizes are optional and can be combined at will
- High performance LED chips, high lumen efficiency and low light decay
- Can completely replace the traditional T5 fluorescent lamps, brighter and more energy saving
- PC extrusion batten
- IC driver
- Connectable
- High quality 2835 LED chips
- Comply with LVD, Safe and reliable
- With SIRIM certified
TECHNICAL DATA
| Electrical parameters | |
| Rated Voltage | 220-240V~ |
| Rated Frequency | 50/60Hz |
| Safety Class | Class II |
| Life Data | |
| Life Time | 15000h |
| Switch Times | <7500 |
| Operation Data | |
| IP | IP20 |
| Operating Temperature | -20°C~+45°C |
| Storage Temperature | -20°C~+60°C |
| Mechanical Data | |
| Housing Material | PC |
| Cover Material | PC |
| Other | |
| SDCM | <6 |
| Certification | CB/ROHS |
| Model | Watts (W) | PF | Luminous Flux (lm)(3000K/ 4000K&6500K) | Beam Angle | CRI | Dimension (mm) |
| MBL 2023 5W | 5W | 0.5 | 400/450 | 120° | ≥80 | 295*21*34 |
| MBL 2023 9W | 9W | 0.5 | 800/900 | 120° | ≥80 | 535*21*34 |
| MBL 2023 14W | 14W | 0.5 | 1200/1350 | 120° | ≥80 | 835*21*34 |
| MBL 2023 18W |
18W | 0.5 | 1600/1800 | 120° | ≥80 | 1135*21*34 |
PRODUCT DIMENSION
| Model | Size (L*W*H) mm | Single Box Dimensions(L*W*H) mm |
| MBL 2023 5W | 295*21*32 | 350*24*33 |
| MBL 2023 9W | 535*21*32 | 590*24*33 |
| MBL 2023 14W | 835*21*32 | 890*24*33 |
| MBL 2023 18W | 1135*21*32 | 1190*24*33 |
DOCUMENTS AND CERTIFICATES
- Check the light using a phone’s camera. It’s flicker free so you and your family’s eyes are protected.
APPLICATION
- Kitchens
- Under cabinet lighting
- Offices
- Retail shops
- Supermarkets
- Workstations
- Study rooms
- Storage rooms
- Corridors and hallways
COUNTRY-SPECIFIC INFORMATION
The Megaman LED T5 Batten MBL2023 is designed to operate with Malaysia’s standard 220–240V electrical system, ensuring compatibility with most residential and commercial installations.
LED T5 batten lights are commonly used in Malaysian homes, offices, retail shops, and commercial spaces due to their space-saving design and energy efficiency.
Megaman lighting products are widely trusted in Malaysia for their performance, durability, and reliable lighting quality.
