PRODUCT DETAILS
PRODUCT DESCRIPTION

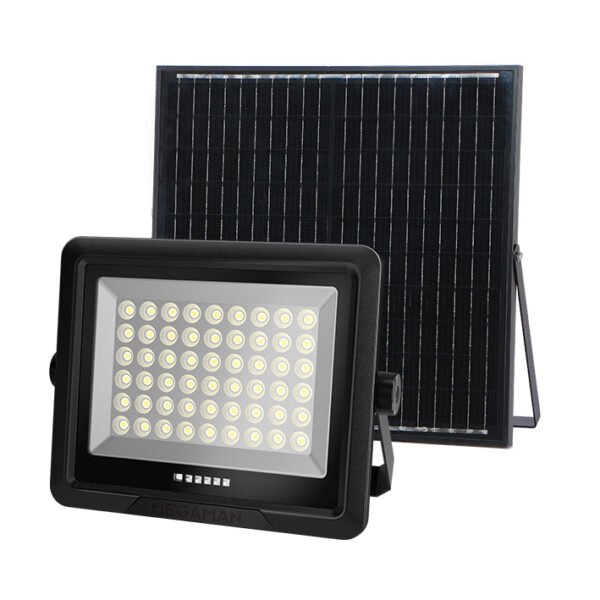

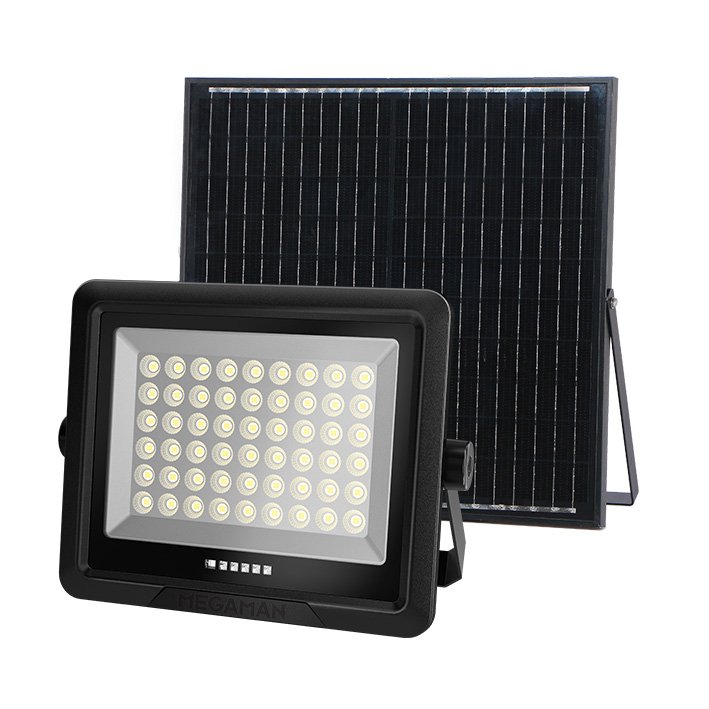

- Solar panel with High-strength aluminum frame
- High efficient conversion more than 21.8%
- Intelligent battery management system

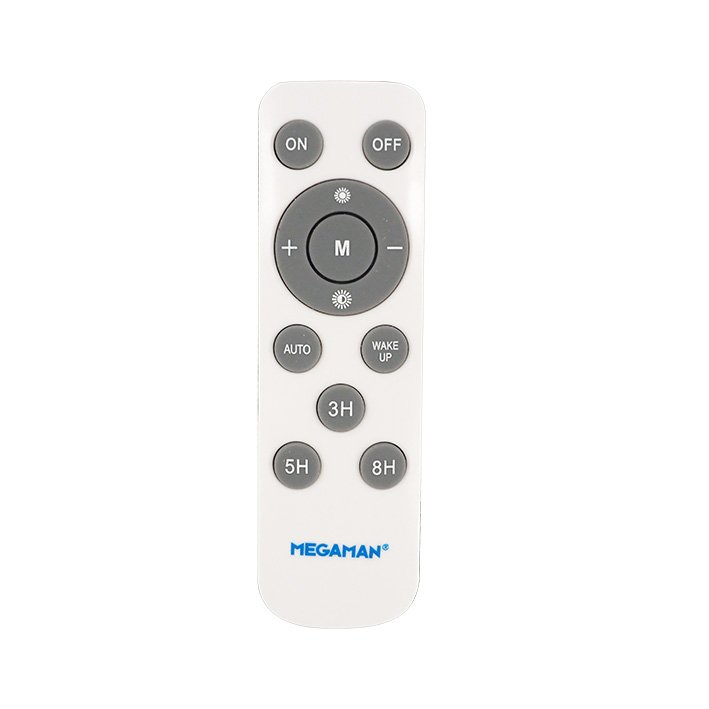

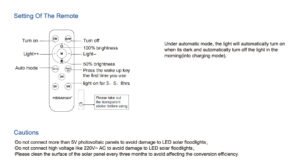

- Dimmable luminaires by remote control, 90° Beam angle
- Robust ABS high strength & Long Lasting lifespan, IP65
- Lithium Iron phosphate battery, 2000+ charge/discharge cycles
- With SIRIM certified
TECHNICAL DATA
| Electrical parameters | |
| Rated Voltage | 5VDC |
| Safety Class | Class III |
| Life Data | |
| Life Time | 25000h |
| Switch Times | – |
| Operation Data | |
| IP/IK | IP65/ IK05 |
| Operating Temperature | -10°C~+50°C |
| Storage Temperature | -20°C~+60°C |
| Mechanical Data | |
| Housing Material | ABS |
| Cover Material | Glass |
Photoelectric Parameter
| Model | Watts (W) | Luminous Flux (lm)(3000K/ 6500K) | Beam Angle | CRI | Dimension (mm) |
| ZDLS3016/100W | 100W | 1000 | 90° | ≥80 | 120*101*24 |
| ZDLS3016/200W | 200W | 2000 | 90° | ≥80 | 170*128*26 |
| ZDLS3016/400W | 400W | 4000 | 90° | ≥80 | 221*158*26 |
| ZDLS3016/600W | 600W | 6000 | 90° | ≥80 | 306*220*29 |
Solar Panel Parameter
| Model | Type | Panel Material | Color | Frame Material | Wire Length (m) |
| ZDLS3016/100W | 5V/7W | Monocrystalline Silicon | Black | Aluminum | 3m |
| ZDLS3016/200W | 5V/15W | Monocrystalline Silicon | Black | Aluminum | 3m |
| ZDLS3016/400W | 5V/25W | Monocrystalline Silicon | Black | Aluminum | 3m |
| ZDLS3016/600W | 5V/38W | Monocrystalline Silicon | Black | Aluminum | 3m |

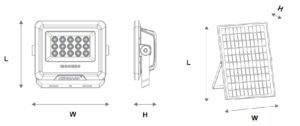

PRODUCT DIMENSION
| Model | Lamp Size (L*W*H) mm | Panel Size (L*W*H) mm |
| ZDLS3016/100W | 228*198*67 | 210*200*17 |
| ZDLS3016/100W | 295*252*67 | 390*235*17 |
| ZDLS3016/100W | 356*300*71 | 390*375*17 |
| ZDLS3016/100W | 406*438*79 | 390*510*17 |

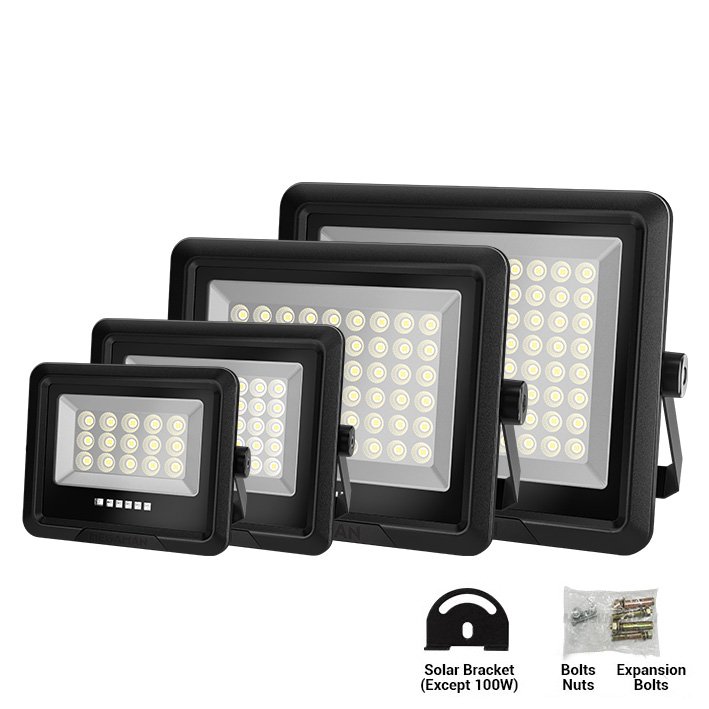

ACCESSORIES OPTIONAL
PRODUCT IMAGES AND GRAPHICS

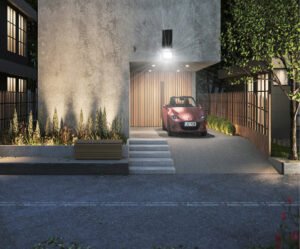

APPLICATION
- Residential outdoor areas
- Gardens and landscapes
- Car parks
- Building exteriors
- Pathways and walkways
- Security lighting
- Farms and rural areas
- Signboards and outdoor displays
COUNTRY-SPECIFIC INFORMATION
The Megaman LED Solar Flood Light ZDLS3016 is highly suitable for Malaysia’s tropical climate, where abundant sunlight ensures efficient solar charging.
Solar lighting is widely used in Malaysia for:
- Residential outdoor lighting
- Security lighting
- Commercial outdoor areas
- Rural and off-grid locations
Megaman solar products are designed to perform reliably in hot, humid, and rainy conditions.
