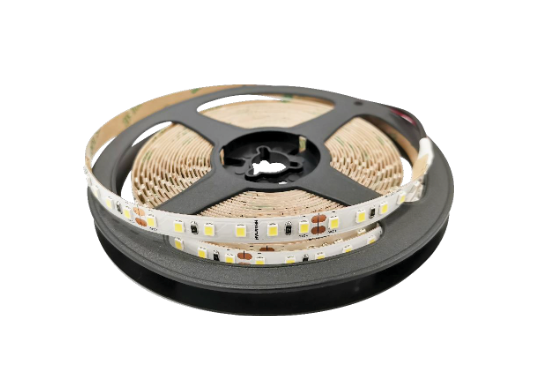

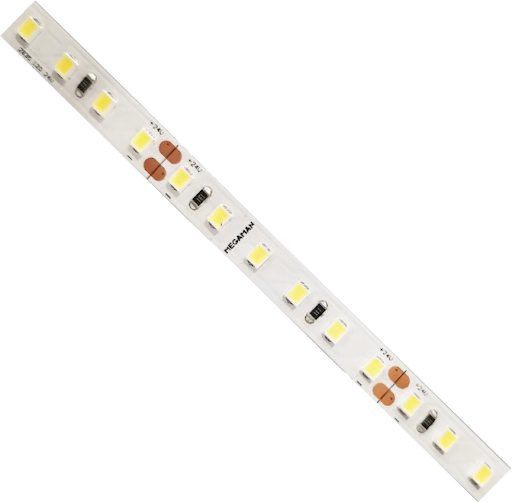

PRODUCT DESCRIPTION

• Easy to bend, can be arbitrary modeling;
• High quaity and high light efficiency SMD/2835 LED chips;
• Adopt high quality PCB board, low voltage drop;
• Lighting effect uniform, can meet the requirements of linear lighting;
• Low voltage DC drvie, safe and reliable;
• With 3M tape on the back, easy to install, firm and do not fall off.

TECHNICAL DATA

Electrical Parameters
Rated Voltage	24VDC
Rated Frequency	–
Life Data
Life Time	25000h
Switch Times	12500
Operation Data
IP	IP20
Operating Temperature	-20°C~+40°C
Storage Temperature	-20°C~+60°C
Mechanical Data
Housing Material	–
Other
SDCM	<5
Certification	CB/ROHS



Model	Watts (W)	PF	Luminous Flux (lm)	Efficacy (lm/W)	Ra	Beam Angle	LED chip 2835
YTSLA01-FPC 12W 6500K	12W	–	1200	100	80	120°	120L
YTSLA01-FPC 12W 4000K	12W	–	1200	100	80	120°	120L
YTSLA01-FPC 12W 4000K	12W	–	1080	90	80	120°	120L

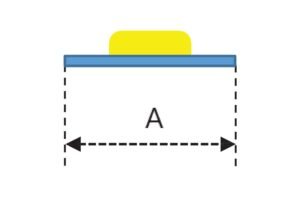

PRODUCT DIMENSION

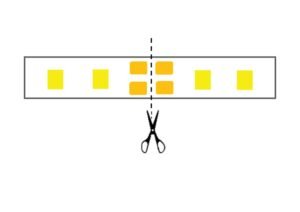

Model	A (mm)	Cutting (mm)
YTSLA01-FPC 12W	8	50



APPLICATION

• Home
• Hotel
• Entertainment venues
• Cabinet, counter
• Advertising board
