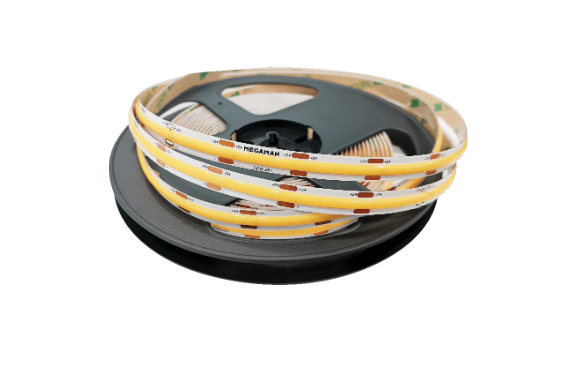

PRODUCT DESCRIPTION

• Easy to bend, can be arbitrary modeling;
• COB LED chips, high brightness and light efficiency;
• Adopt high quality PCB board, low voltage drop;
• Linear light emitting, no spots, no dark areas, 180° big beam angle;
• RA≥90, High color reduction;
• Low voltage DC drive, safe and reliable;
• With 3M tape on the back, easy to install, firm and do not fall off.

TECHNICAL DATA

Electrical parameters
Rated Voltage	24VDC
Rated Frequency	–
Life Data
Life Time	25000h
Switch Times	12500
Operation Data
IP	IP20
Operating Temperature	-20°C~+40°C
Storage Temperature	-20°C~+60°C
Mechanical Data
Housing Material	–
Other
SDCM	<5
Certification	CB/ROHS



Model	Watts (W)	PF	Luminous Flux (lm)	Efficacy (lm/W)	Ra	Beam Angle	LED chip
YTSLC01-FPC 10W 6500K	10W	–	1000	100	90	120°	352L
YTSLC01-FPC 10W 4000K	10W	–	1000	100	90	120°	352L
YTSLC01-FPC 10W 3000K	10W	–	900	902	90	120°	352L

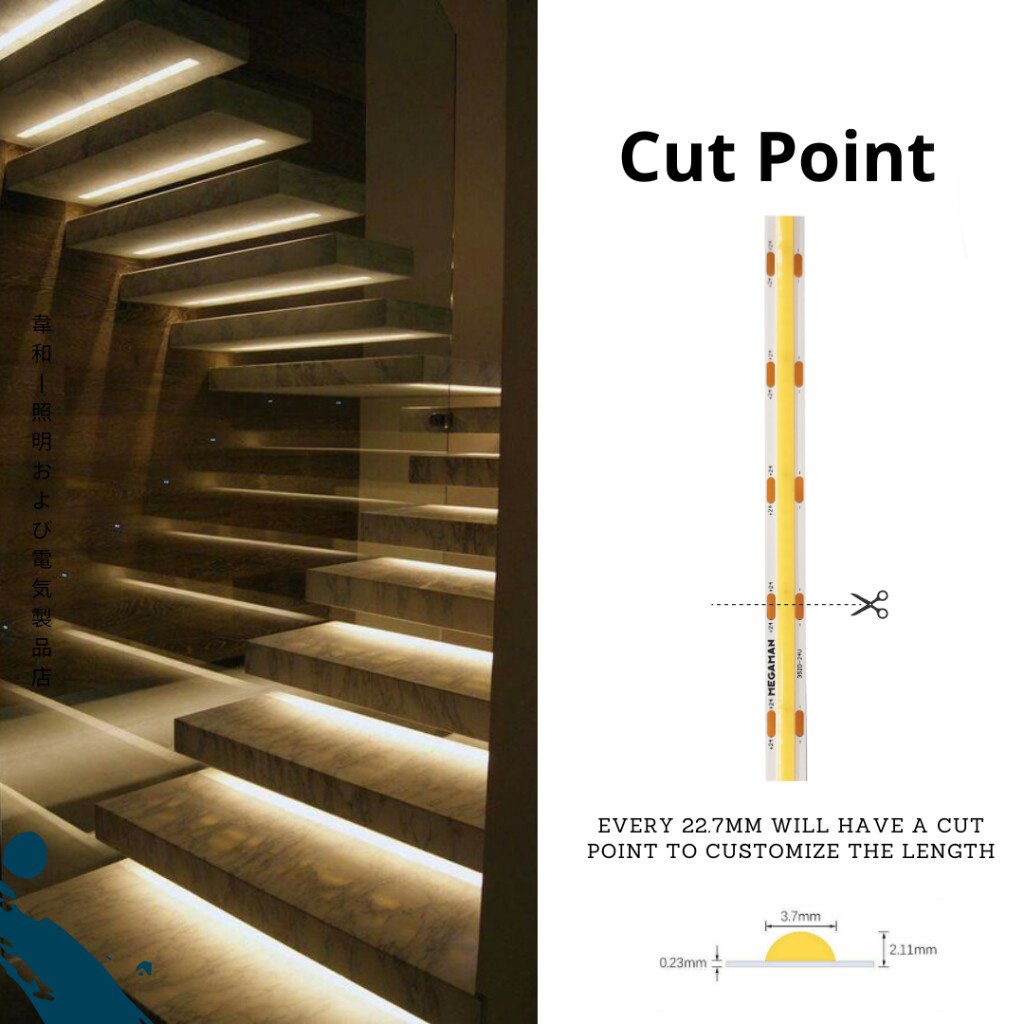

PRODUCT DIMENSION

Model	A (mm)	Cutting (mm)
YTSLC01-FPC 10W	8	22.7

APPLICATION

• Home
• Hotel
• Entertainment venues
• Cabinet, counter
• Advertising board
