PRODUCT DETAILS
PRODUCT DESCRIPTION

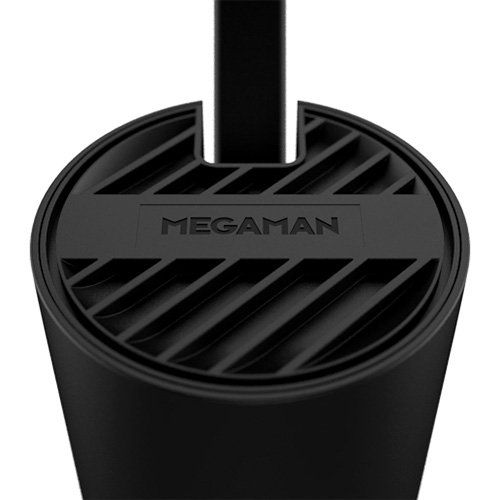

- Hollow convection excellent heat dissipation design
- 36° Beam angle, highlighting larger objects
- High light efficiency & Accent lighting
- Compact design, take up very little space
- IP20 Ingress Protection rating, Die-cast aluminum radiator
- Classic shape with Class II Rails
TECHNICAL DATA
| Electrical parameters | |
| Rated Voltage | 170-240VAC |
| Rated Frequency | 50/60Hz |
| Life Data | |
| Life Time | 25000h |
| Operation Data | |
| IP/IK | IP20/IK03 |
| Operating Temperature | -20°C~+45°C |
| Mechanical Data | |
| Housing Material | PC |
| Cover Material | PC |
| Other | |
| Driver Protection | IC integrated/ Short Circuit/ Overload Protection |
| Certification | CB/CE/ROHS |
| Model | Watts (W) | PF | Luminous Flux (lm)(3000K&4000K) | Beam Angle | CRI | Dimension (mm) |
| YTTR003/10W | 10W | 0.5 | 900 | 36° | ≥80 | Ø50,97*172 |
| YTTR003/20W | 20W | 0.5 | 1800 | 36° | ≥80 | Ø65,97.5*195.7 |
| YTTR003/30W | 30W | 0.5 | 2700 | 36° | ≥80 | Ø75*97.5*218 |
PRODUCT DIMENSION
| Model | D (mm) | L (mm) | W (mm) |
| YTTR003/10W | Ø50 | 172 | 97.5 |
| YTTR003/20W | Ø65 | 196 | 97.5 |
| YTTR003/30W | Ø75 | 218 | 97.5 |
APPLICATION
- Retail stores
- Showrooms
- Art galleries
- Museums
- Restaurants and cafés
- Hotels
- Display areas
COUNTRY-SPECIFIC INFORMATION
The Megaman LED Track Fitting YTTR003 is designed for Malaysia’s 170–240V electrical system, ensuring compatibility with local installations.
Track lighting is widely used in Malaysia for:
- Retail shops and boutiques
- Commercial display areas
- Modern homes
- Cafés and restaurants
Megaman track lighting is popular for its flexibility, performance, and modern design in Malaysian interiors.
