PRODUCT DETAILS
PRODUCT DESCRIPTION
- Die-cast aluminum radiator
- Available in a variety of angles 24°
- High lumens and high light efficiency
- Rail mounting method

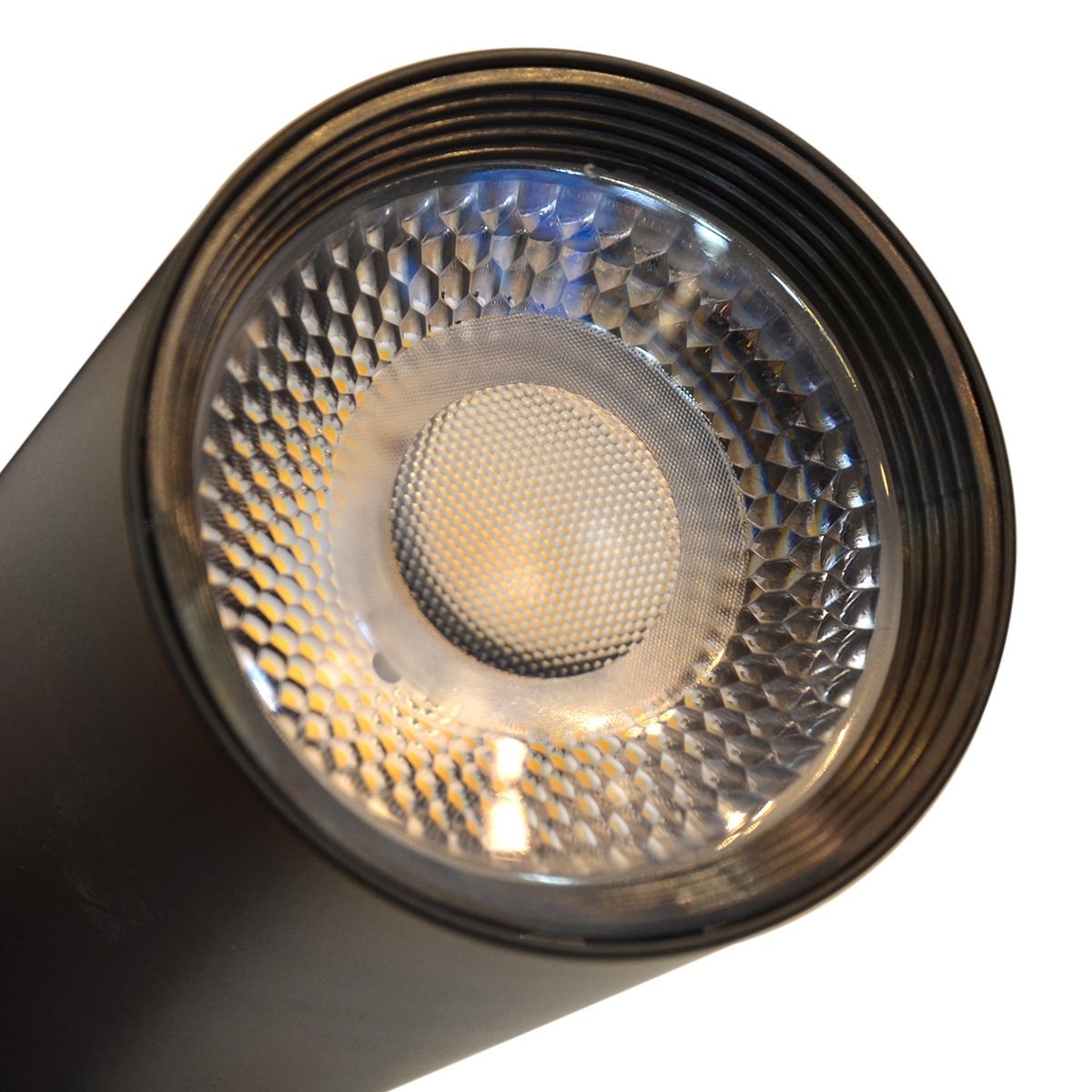

- High quality COB LED chips
- Comply with LVD, Safe and reliable
- High performance COB chips, high lumen efficiency and low light decay
- Flicker free, effectively protect eyesight
- No UV, infrared radiation, no mercury environmental protection
TECHNICAL DATA
| Electrical parameters | |
| Rated Voltage | 220-240VAC |
| Rated Frequency | 50/60Hz |
| Life Data | |
| Life Time | 25000h |
| Switch Times | >12500 |
| Operation Data | |
| IP | IP20 |
| Operating Temperature | -20°C~+40°C |
| Storage Temperature | -20°C~+60°C |
| Mechanical Data | |
| Housing Material | Aluminun |
| Cover Material | PC |
| Other | |
| SDCM | <6 |
| Certification | CB/ROHS |
| Model | Watts (W) | PF | Luminous Flux (lm)(3000K&4000K) | Beam Angle | CRI | Dimension (mm) |
| MQTS2004 10W | 10W | 0.5 | 800/900 | 36° | ≥80 | Ø54,90*145 |
| MQTS2004 20W | 20W | 0.5 | 1600/1800 | 36° | ≥80 | Ø62,120*147 |
| MQTS2004 30W | 30W | 0.5 | 2400/1700 | 36° | ≥80 | Ø80,130*175 |

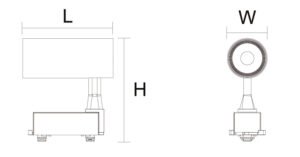

PRODUCT DIMENSION
| Model | L (mm) | W (mm) | H (mm) | Single Box Dimensions(L*W*H) mm |
| MQTS2004 10W | 114 | 54 | 145 | 160*60*138 |
| MQTS2004 20W | 114 | 62 | 147 | 168*66*150 |
| MQTS2004 30W | 129 | 80 | 175 | 187*85*168 |
APPLICATION
- Retail stores
- Showrooms
- Art galleries
- Exhibition spaces
- Offices
- Restaurants and cafés
- Residential interiors
- Commercial spaces
- Hotels
COUNTRY-SPECIFIC INFORMATION
The Megaman MQTS2004 Track Fitting is designed to work with Megaman track lighting systems, allowing seamless integration with:
-
LED track lights
-
Track rails
-
Adjustable lighting fixtures
The Megaman LED Track Fitting MQTS2004 is compatible with Malaysia’s 220–240V electrical system and is suitable for use in homes, retail environments, and commercial spaces.
Track lighting is widely used in Malaysia for retail stores, showrooms, and modern residential interiors, where flexible and directional lighting is essential.
