PRODUCT DETAILS
PRODUCT DESCRIPTION
- High system efficacy up to 100lm/W
- Light without flicker reduce stress while working/living underneath
- Integrated IC constant DOB driver, CE compliant, safe and reliable
- Up to 50% energy saving compared to conventional downlight
- High-quality engineering plastic, high strength and fearless turning yellow
- With SIRIM certified
TECHNICAL DATA
| Electrical parameters | |
| Rated Voltage | 170-240V~ |
| Rated Frequency | 50/60Hz |
| Life Data | |
| Life Time | 15000h |
| Switch Times | >7500 |
| Operation Data | |
| IP | IP20 |
| Operating Temperature | -20°C~+45°C |
| Storage Temperature | -20°C~+60°C |
| Mechanical Data | |
| Housing Material | Plastic |
| Cover Material | PC |
| Other | |
| SDCM | <6 |
| Certification | CB/ROHS |
| Model | Watts (W) | PF | Luminous Flux (lm)
(3000K/ 4000K&6500K) |
Beam Angle | CRI | Dimension (mm) |
| MXTL1045/S/15W | 15W | 0.5 | 1350/1500 | 120° | ≥80 | Ø180*35 |
| MXTL1045/S/15W | 24W | 0.5 | 2160/2400 | 120° | ≥80 | Ø225*35 |

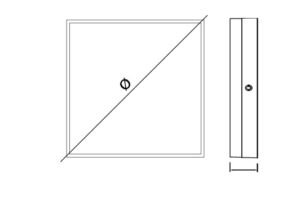

PRODUCT DIMENSION
| Model | Watts (W) | Diameter Ø(mm) | Height H(mm) |
| MXTL1045/S/15W | 15W | 180 | 35 |
| MXTL1045/S/24W | 24W | 225 | 35 |
APPLICATION
- Living rooms
- Offices
- Meeting rooms
- Retail stores
- Schools and institutions
- Schools and institutions
COUNTRY-SPECIFIC INFORMATION
The Megaman LED Surface Panel Light MXTL1045/S is designed for Malaysia’s 220–240V electrical system, ensuring compatibility with local installations.
Surface panel lights are widely used in Malaysia for:
- Residential homes
- Offices and commercial buildings
- Retail shops
- Educational institutions
They are especially popular in Malaysia where concrete ceilings make recessed lighting less practical.
