PRODUCT DETAILS
PRODUCT DESCRIPTION
- Efficient black monocrystaline silicon solar panels with a conversion rate of 21% and above
- High quality LiFePO4 battery bringing durable lights
- The solar panels are individually designed with a high-strength aluminum frame
- High tansmittance UV-resistant PC Outdoor optical lens
- Robust aluminum die-casting Housing ensures good thermal management and long- lasting lifespan
- Uniform light, no glare with a separate street lamp photometric test report
- Intelligent battery management system Safe, reliable and long life
FEATURES

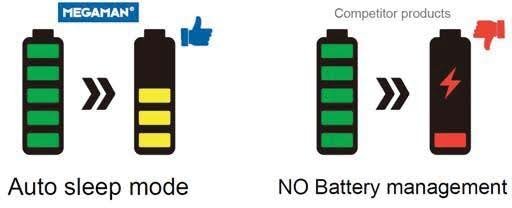

Megaman Solar street light ZDLS3007 series are equipped with an automatic sleep mode.
Prevent lamps from being incorrectly lit up during storage and turnover, which can
drain the battery and affect product life.
Sleep Mode:
When light is OFF, 48H without any action, the discharge pattern of the battery
will go into sleep mode, means the light can not be opened by remote control any more.
Activation:
Just use solar panel, connect the light with solar panel,
and exposure to the sun to charge. Then the light is activate and can be controlled by remote.
TECHNICAL DATA
| Model | ZDL53007 | ||
|---|---|---|---|
| Equivalent Wattage | 200W | 400W | 600W |
| Full Luminous | 2000lm | 4000lm | 6000lm |
| Input Voltage | DC 5V | ||
| CCT | 6500K | ||
| Battery Parameters | LiFePO4 3.2V / 25AH | LiFePO4 3.2V / 30AH | LiFePO4 3.2V / 35AH |
| Charging Time | 6–8H | ||
| Solar Panel Power | Monocrystal 6V / 30W | Monocrystal 6V / 35W | Monocrystal 6V / 45W |
| Beam Angle | 70°×140° | ||
| IP/IK | IP65 / IK08 | ||
| Class | Class III | ||
| ta | -20~+45°C | ||
| LED Brand | SANAN 2835 | ||
| Driver Brand | N.A | ||
| Flicker Free | Yes | ||
| Solar Panel Dimension | 360×390mm | 390×430mm | 390×590mm |
| Body Dimension | 456×212×79mm | 523×219×79mm | 580×221×79mm |
| Lifetime | 35000hrs | ||
| Install Way | Fixed | ||
| Charging Time | 6–8hrs | ||
| Working Time | 8–12hrs | ||
| Suggested Mount Height | 8m–10m | ||
| Certification | CE / EMC / RoHs | ||
| Remarks | |||

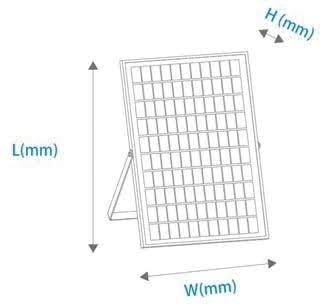

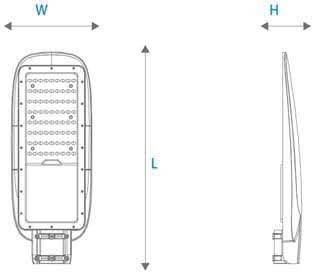

PRODUCT DIMENSION
| Model | wattage | Products Dimension | Solar Panel Dimension | ||||
|---|---|---|---|---|---|---|---|
| W (mm) |
L (mm) |
H (mm) |
W (mm) |
L (mm) |
H (mm) |
||
| ZDLS3007 | 200W | 212 | 456 | 79 | 360 | 390 | 16 |
| 400W | 219 | 523 | 79 | 390 | 430 | 16 | |
| 600W | 221 | 580 | 79 | 390 | 590 | 16 | |

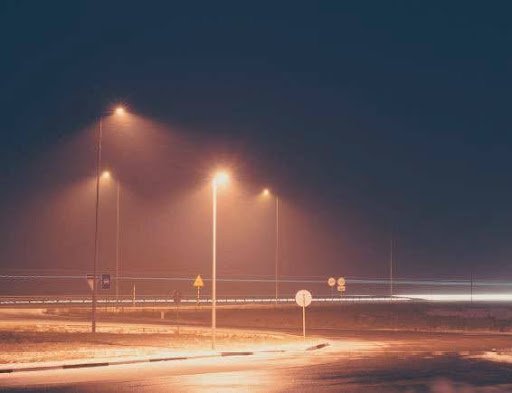

APPLICATION
- Urban Road
- Residential Area
- Square
- Country Road
- Parking Lot
