PRODUCT DETAILS
PRODUCT DESCRIPTION

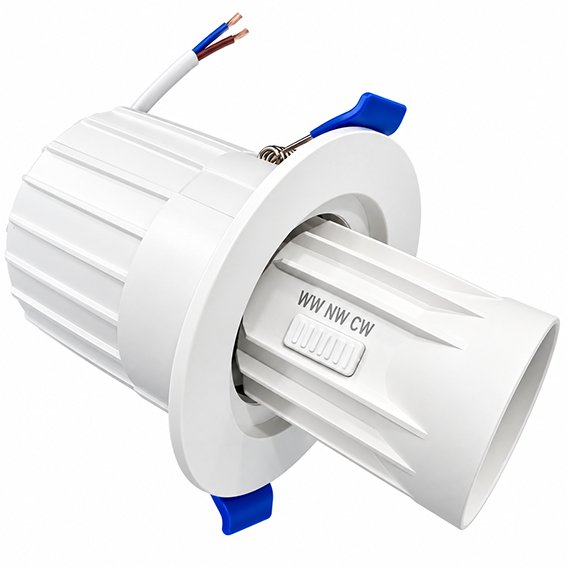

- Individual power has perfect CCT DIP switch
- Flexible aiming – tilt up to 60° and rotate 355°
- Unique stretchable housing for adjustable illumination angle
- Recessed installation, Flicker free, effectively protect eyesight
- No UV, infrared radiation, no mercury environmental protection
- High performance LED chips, high lumen efficiency and low light decay
- With SIRIM certified
Datasheet:-STRETCHABLE EYE BALL_YTSP007-CCT
TECHNICAL DATA
| Electrical parameters | |
| Rated Voltage | 170-240V~ |
| Rated Frequency | 50/60Hz |
| Life Data | |
| Life Time | 15000h |
| Operation Data | |
| IP | IP20 |
| Working Temperature | -20°C~+40°C |
| Mechanical Data | |
| Material | PA+ PC |
| Flicker Free | Yes |
| Other | |
| Function | Adjustable Color Temperature |
| Model | Watts (W) | PF | Luminous Flux (lm) | Beam Angle | CRI | Dimension (mm) |
| YTSP007-CCT | 7W | 0.5 | 650 | 60° | ≥80 | Ø90*130 |

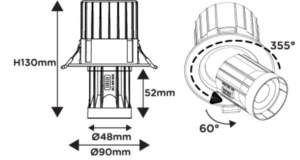

PRODUCT DIMENSION
| Model | L (mm) | H (mm) |
| YTSP007-CCT | Ø90 | 130 |
APPLICATION
- Living rooms
- Feature walls
- Display cabinets
- Boutiques
- Showrooms
- Restaurants and cafés
- Hotels
- Galleries
- Commercial displays
COUNTRY-SPECIFIC INFORMATION
The Megaman LED Eye Ball YTSP007-CCT is designed for interior applications where lighting flexibility is just as important as illumination.
Its combination of adjustable colour temperature, directional lighting and recessed installation allows users to adapt the fitting to different interior styles and lighting requirements.
Rather than using only fixed downlights throughout a room, Eye Ball fittings can be strategically positioned to highlight selected areas and create greater visual depth.
This makes the YTSP007-CCT particularly suitable for homeowners, interior designers, retailers and commercial users seeking a flexible recessed lighting solution.
