PRODUCT DETAILS
PRODUCT DESCRIPTION
- DOB IC Driver, integrated design
- Ultra-thin shape, simple and beautiful
- Complete size, serialized style shape
- Back-lit, luminous uniform without dark area
- No UV, infrared radiation
- No mercury environmental protection
- With SIRIM certified
TECHNICAL DATA
| Electrical parameters | |
| Rated Voltage | 170-240V~ |
| Rated Frequency | 50/60Hz |
| Life Data | |
| Life Time | 15000h |
| Switch Times | >7500 |
| Operation Data | |
| IP/IK | IP20 |
| Operating Temperature | -20°C~+45°C |
| Storage Temperature | -20°C~+60°C |
| Mechanical Data | |
| Housing Material | PP |
| Cover Material | PP |
| Other | |
| SDCM | <6 |
| Certidication | CB/ROHS |
| Model | Watts (W) | PF | Luminous Flux (lm)(3000K/ 4000K&6500K) | Beam Angle | CRI | Dimension (mm) |
| MQTL1241-Y/9W | 9W | 0.5 | 650/720 | 120° | ≥80 | Ø120*30(4”) |
| MQTL1241-Y/12W | 12W | 0.5 | 870/960 | 120° | ≥80 | Ø145*30(5”) |
| MQTL1241-Y/15W | 15W | 0.5 | 1080/1200 | 120° | ≥80 | Ø175*30(6”) |
| MQTL1241-Y/24W | 24W | 0.5 | 1730/1920 | 120° | ≥80 | Ø220*30(8”) |

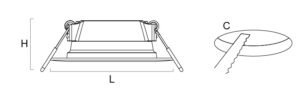

PRODUCT DIMENSION
| Model | L (mm) | W (mm) | C (mm) | Single Box Dimension (L*W*H)mm |
| MQTL1241-Y/9W | Ø120 | 30 | Ø105 | 123*35*123 |
| MQTL1241-Y/12W | Ø145 | 30 | Ø125 | 150*36*150 |
| MQTL1241-Y/15W | Ø175 | 30 | Ø150 | 175*36*175 |
| MQTL1241-Y/24W | Ø220 | 30 | Ø200 | 235*36*225 |
APPLICATION
- Living rooms
- Bedrooms
- Kitchens
- Offices
- Retail stores
- Showrooms
- Hotels and hospitality spaces
- Corridors and hallways
COUNTRY-SPECIFIC INFORMATION
The Megaman LED Downlight MQTL1241-Y (Round) is designed for Malaysia’s 170–240V electrical system, ensuring compatibility with local installations.
LED downlights are widely used in Malaysia for:
- Residential homes
- Offices and commercial buildings
- Retail environments
- Hospitality spaces
Megaman lighting products are trusted for their durability and performance in Malaysian conditions.
