PRODUCT DETAILS
PRODUCT DESCRIPTION
- Narrow end-cap design
- Uniform light when multi-installation
- PC material light transmission cover
- High light transmission rate reaches 95%
- Low light attenuation & high luminous efficiency
- High performance LED particles & Luminous flux
Datasheet:-MEGAMAN_LED LINEAR BATTEN_MXL2121
TECHNICAL DATA
| Electrical parameters | |
| Rated Voltage | 220-240V |
| Rated Frequency | 50/60Hz |
| Life Data | |
| Life Time | 25000h |
| Operation Data | |
| IP | IP20/ IK03 |
| Operating Temperature | -10°C~+60°C |
| Mechanical Data | |
| Housing Material | Aluminum |
| Cover Material | PC |
| LED Brand | Sanan 2835 |
| Driver Protection | Short Circuit/ Overload Protection |
| Other | |
| Install Way | Surface Mount |
| Certification | CB/EMC/ RoHs |
| Model | Watts (W) | PF | Luminous Flux (lm)
(3000K/ 4000K&6500K) |
Beam Angle | CRI | Dimension (mm) |
| MXL2121 60W | 60W | 0.9 | 5400/ 6000lm | 120° | ≥80 | 1196*30*52 |
APPLICATION

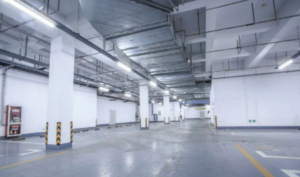

- Parking Lot
- Warehouse
- Store
- Mall
- Corridor
- Office
- Home
COUNTRY-SPECIFIC INFORMATION
The Megaman LED Linear Batten MXL2121 combines high light output with a slim, practical linear design.
Its 60W power rating, up to 6000-lumen output, 120° beam angle, 3000K/4000K/6500K options, PF 0.9 and 25,000-hour rated lifetime make it suitable for a broad range of commercial and professional indoor lighting applications.
The narrow end-cap and high-transmission PC cover further support a clean and uniform lighting appearance, particularly when multiple fixtures are used within the same space.
