PRODUCT DETAILS

PRODUCT DESCRIPTION
  • Metal housing zero screws design
  • Separate IC drive, Flicker free
  • Stamping SPCC+ high reflectivity spraying
  • Big beam angle brighten large areas
  • No UV, infrared radiation
  • No mercury environmental protection
  • With SIRIM certified
TECHNICAL DATA
Electrical parameters
Rated Voltage 170-240V~
Rated Frequency 50/60Hz
Safety Class Class II
Life Data
Life Time 30000h
Operation Data
IP/IK IP20/IK03
Storage Temperature -20°C~+60°C
Mechanical Data
Housing Material SPCC
Cover Material PS
Other
LED Brand SANAN 2835
Driver Protection SELV/ Short Circuit/Overload Protection



Model Watts (W) PF Luminous Flux (lm)(3000K/ 4000K&6500K) Beam Angle CRI Dimension (mm)
MQTL1170/20W 20W 0.9 1400/1600 120° ≥80 Ø175*35 (6”)
MQTL1170/30W 30W 0.9 2430/2700 120° ≥80 Ø220*35(8”)

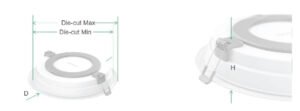

PRODUCT DIMENSION

Model D (mm) H (mm) Die-cut Ø (mm)
MQTL1170/20W Ø175 35 Ø150
MQTL1170/30W Ø220 35 Ø200

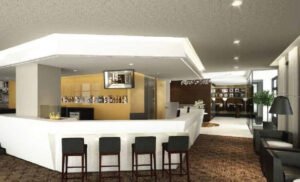

APPLICATION
  • Living rooms
  • Bedrooms
  • Kitchens
  • Offices
  • Retail stores
  • Showrooms
  • Hotels and hospitality spaces
  • Corridors and hallways

COUNTRY-SPECIFIC INFORMATION

The Megaman LED Recessed Downlight MQTL1170 is designed for Malaysia’s 170–240V electrical system, ensuring compatibility with local installations.

Recessed downlights are widely used in Malaysia for homes, offices, retail spaces, and commercial buildings, especially for modern interior designs.

Megaman lighting products are trusted for their durability and performance in Malaysian conditions.
