PRODUCT DETAILS
PRODUCT DESCRIPTION
- IC Driver
- Big Beam Angle
- Plastic + aluminum heat sink
- High transmittance PC cover
- High quality 2835 LED Chips
- Comply with LVD, Safe and reliable
- With SIRIM certified
- Long operation lifespan
TECHNICAL DATA
| Electrical parameters | |
| Rated Voltage | 100-240V~( 3W &5W)
170-240V~ |
| Cap | E27 |
| Life Data | |
| Life Time | 15000h |

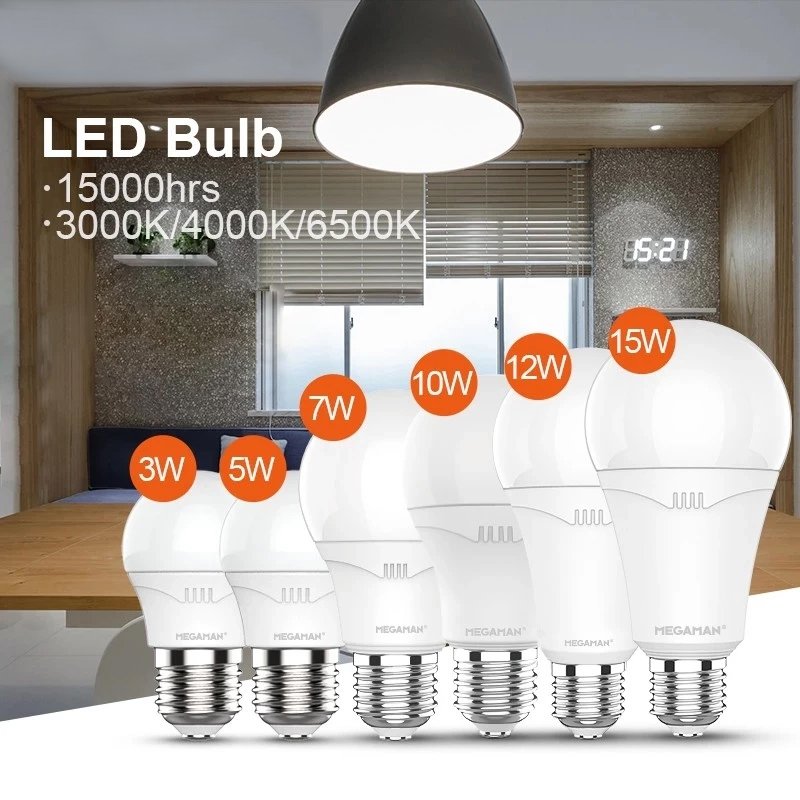

| 3W, 5W, 7W= Daylight/ Warm White | 10W, 12W, 15W= Daylight/ Cool White/ Warm White |
| Model | Watts (W) | PF | Luminous Flux (lm)(3000K/ 4000K&6500K) | Beam Angle | CRI | Dimension (mm) |
| YTG45Z1 | 3W | 0.5 | 240/270 | 200° | ≥80 | Ø45*80 |
| YTG45Z1 | 5W | 0.5 | 400/450 | 200° | ≥80 | Ø45*80 |
| YTA60Z4 | 7W | 0.5 | 560/630 | 200° | ≥80 | Ø60*108 |
| YTA60Z1 | 10W | 0.5 | 720/810 | 200° | ≥80 | Ø60*112 |
| YTA65Z2 | 12W | 0.5 | 960/1080 | 200° | ≥80 | Ø65*132 |
| YTA70Z1 | 15W | 0.5 | 1200/1350 | 200° | ≥80 | Ø70*143 |
APPLICATION
- Living rooms
- Bedrooms
- Dining areas
- Offices
- Restaurants and cafés
- Retail shops
- Hotels and hospitality environments
COUNTRY-SPECIFIC INFORMATION

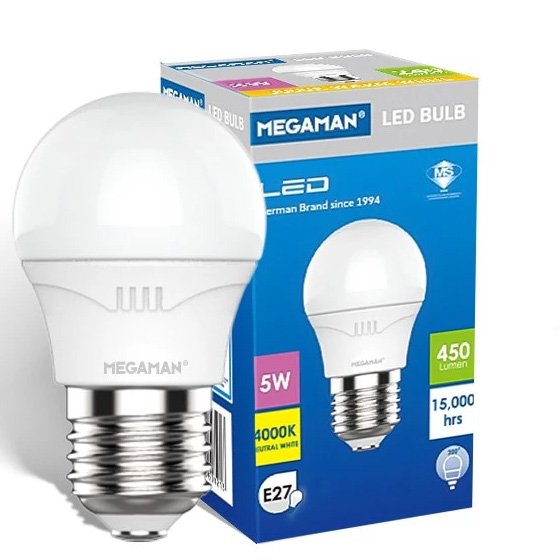

Megaman G/A Bulb Series is designed to meet the lighting needs of homes and businesses in Malaysia. These LED bulbs operate on the standard 170–240V electrical system, making them compatible with most residential and commercial lighting fixtures nationwide.
Megaman LED bulbs available in Malaysia are SIRIM-certified, ensuring they comply with Malaysian safety and quality standards for electrical products.
