PRODUCT DETAILS
PRODUCT DESCRIPTION

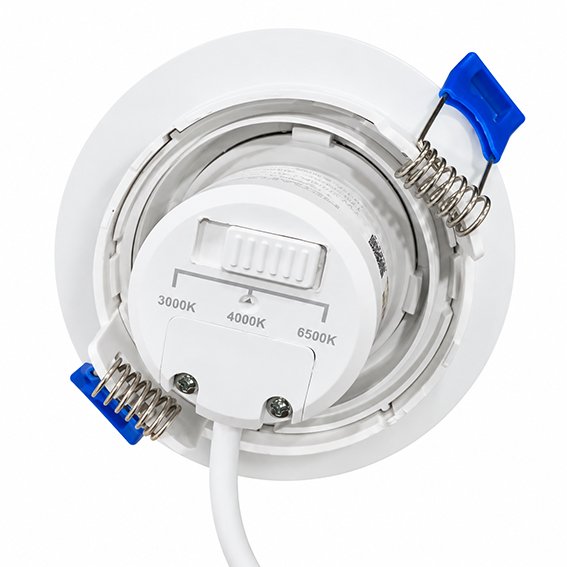

- Individual power has perfect CCT DIP switch
- Complete size, serialized style shape
- Flicker free, effectively protect eyesight
- Flexible aiming – tilt up to 20°
- No UV, infrared radiation, no mercury environmental protection
- High performance LED chips, high lumen efficiency and low light decay
Datasheet:-EYE BALL_YTSP006-Y-CCT
TECHNICAL DATA
| Electrical parameters | |
| Rated Voltage | 170-240V~ |
| Rated Frequency | 50/60Hz |
| Life Data | |
| Life Time | 15000h |
| Operation Data | |
| IP | IP20 |
| Working Temperature | -20°C~+40°C |
| Mechanical Data | |
| Material | PA+ PC+ ABS |
| Flicker Free | Yes |
| Other | |
| Function | Adjustable Color Temperature |
| Model | Watts (W) | PF | Luminous Flux (lm) | Beam Angle | CRI | Dimension (mm) |
| YTSP006-Y-CCT | 7W | 0.5 | 650 | 38° | ≥80 | Ø90*50 |

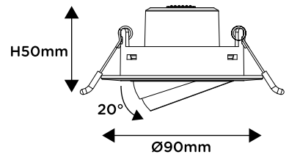

PRODUCT DIMENSION
| Model | L (mm) | H (mm) |
| YTSP006-Y-CCT | Ø90 | 50 |
APPLICATION
- Living rooms
- Feature walls
- Display cabinets
- Boutiques
- Showrooms
- Restaurants and cafés
- Hotels
- Galleries
- Commercial displays
COUNTRY-SPECIFIC INFORMATION

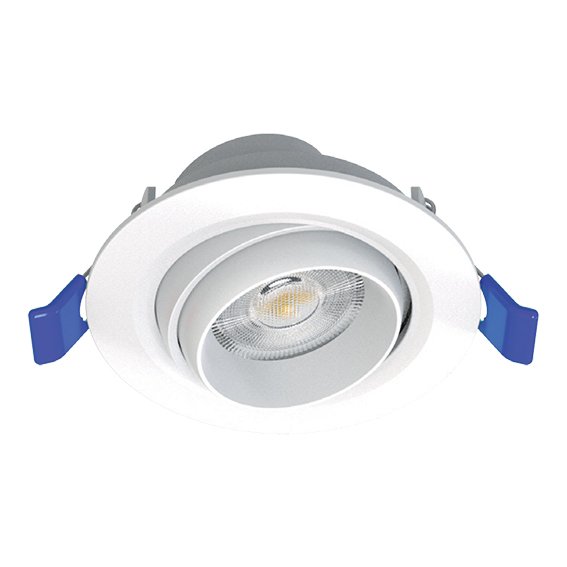

The Megaman LED Eye Ball YTSP006-Y-CCT is designed for customers who want more flexibility from recessed ceiling lighting.
Its combination of 7W LED technology, adjustable lighting direction, recessed installation and adjustable colour temperature makes it particularly suitable for contemporary interiors where both function and visual atmosphere matter.
MEGAMAN Malaysia’s current Eye Ball product range also emphasizes adjustable illumination, recessed installation and applications across residential, hospitality, retail and display environments.
