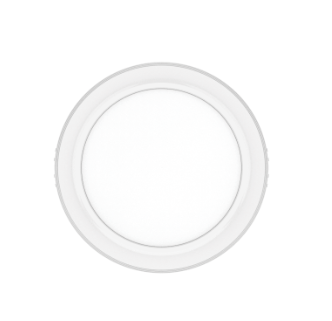

PRODUCT DESCRIPTION

• Ultra-thin shape, simple and beautiful
• Complete size, serialized style shape
• Back-lit, luminous uniform without dark area

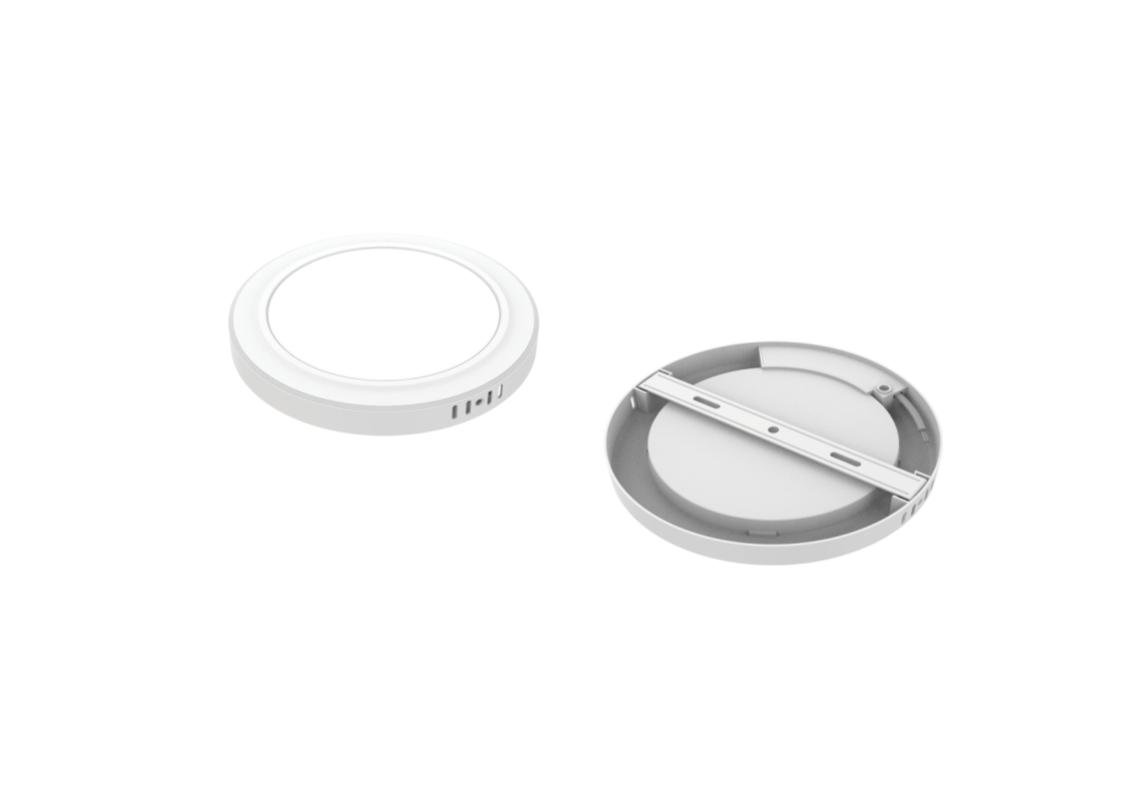

• Enough space behind the lamp, easy installation and wiring
• High performance LED chips, high lumen efficiency and low light decay
• Flicker free, effectively protect eyesight
• No UVM infrared radiation, no mercury environmental protection

TECHNICAL DATA

Electrical parameters
Rated Voltage	170-240VAC
Rated Frequency	50/60Hz
Life Data
Life Time	15000h
Switch Times	<7500
Operation Data
IP	IP20
Operating Temperature	-20°C~+40°C
Storage Temperature	-20°C~+60°C
Mechanical Data
Housing Material	Plastic
Cover Material	PC
Other
SDCM	<6
Certification	CB/ROHS



Model	Watts (W)	PF	Luminous Flux (lm)	Efficacy (lm/W)	Ra	Beam Angle
MXTL1033-Y 15W 3000K	15W	0.5	1200	80	80	120°
MXTL1033-Y 15W 4000K	15W	0.5	1350	90	80	120°
MXTL1033-Y 15W 6500K	15W	0.5	1350	90	80	120°
MXTL1033-Y 24W 3000K	24W	0.5	1920	80	80	120°
MXTL1033-Y 24W 4000K	24W	0.5	2160	90	80	120°
MXTL1033-Y 24W 6500K	24W	0.5	2160	90	80	120°
MXTL1033-Y 30W 3000K	30W	0.5	2400	80	80	120°
MXTL1033-Y 30W 4000K	30W	0.5	2700	90	80	120°
MXTL1033-Y 30W 6500K	30W	0.5	2700	90	80	120°

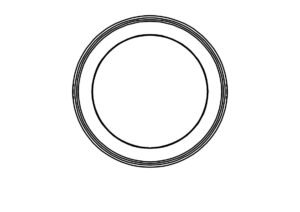

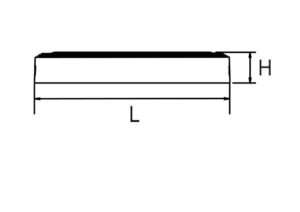

PRODUCT DIMENSION

Model	L (mm)	H (mm)
MXTL1033-Y 15W	Ø180	25
MXTL1033-Y 24W	Ø225	25
MXTL1033-Y 30W	Ø250	25

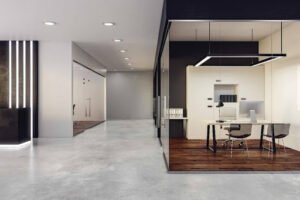

APPLICATION

• Home
• Shop, Store, Hall
• Office
• Conference Room
• Corridor
