PRODUCT DESCRIPTION

• High system efficacy up to 100lm/W
• Light without flicker reduce stress while working/living underneath
• Integrated IC constant DOB driver , CE compliant , safe and reliable
• Up to 50% energy saving compared to conventional downlight
• High-quality engineering plastic , high strength and fearless turning yellow.

TECHNICAL DATA

Model Number	MXTL1045
Wattage	15W/24W/30W
Luminous Efficiency	100lm/W@40K&65K 90lm/W@30K
Lumen	1500lm /2400lm /3000lm
Input Voltage	220-240V
CCT	3000K/4000K/6500K
CRI	Ra>80
Power Factor	>0.5
Beam Angle	120°
IP	IP20
Class	ClassII
Working Temperature	-20 – 40℃
LED Chips	SANAN

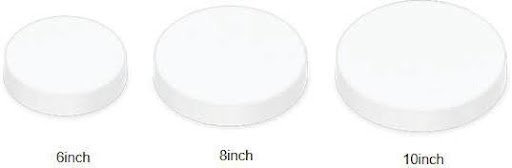

Product Size (mm)	Ø180*35/ Ø225*35/ Ø250*35
Housing	Plastic
Lifespan	15,000Hours

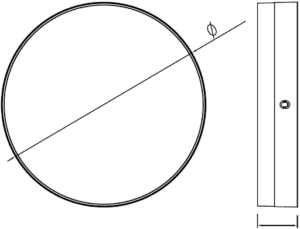

PRODUCT DIMENSION

Diameter Ø(mm)	Height H(mm)
180	180

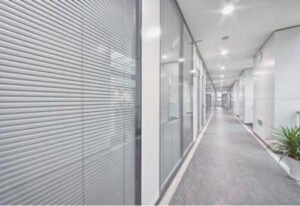

APPLICATION

• Home
• Shopping mall
• School
• Conference mall
