PRODUCT DETAILS
PRODUCT DESCRIPTION
- Embedded installation
- Seperate IC drive, replaceable
- 36° optical lens for more concentrated light
- Adjustable angle, adjust the illumination range at will
- Plastic + Stamped aluminum heat sink
- High quality 2835 LED chips
- Comply with LVD, safe and reliable
- No UV, infrared radiation, no mercury environmental protection
- With SIRIM certified
TECHNICAL DATA
| Electrical parameters | |
| Rated Voltage | 170-240V~ |
| Rated Frequency | 50/60Hz |
| Life Data | |
| Life Time | 15000h |
| Switch Times | >7500 |
| Operation Data | |
| IP | IP20 |
| Operating Temperature | -20°C~+45°C |
| Storage Temperature | -20°C~+60°C |
| Mechanical Data | |
| Housing Material | Plastic + Aluminum |
| Cover Material | PC |
| Other | |
| SDCM | <6 |
| Certification | CB/ROHS |
| Model | Watts (W) | PF | Luminous Flux (lm)
(3000K/ 4000K& 6500K) |
Beam Angle | CRI | Dimension (mm) |
| MQTL2048-CL 5W | 5W | 0.5 | 320/350 | 120° | ≥80 | Ø85*26 |
| MQTL2048 7W | 7W | 0.5 | 440/490 | 120° | ≥80 | Ø85*38 |
PRODUCT DIMENSION
| Model | L (mm) | H (mm) | C (mm) | Single Box Dimensions(L*W*H) mm |
| MQTL2048-CL 5W | Ø85 | 26 | Ø70 | 87*38*87 |
| MQTL2048 7W | Ø85 | 38 | Ø70 | 87*60*87 |

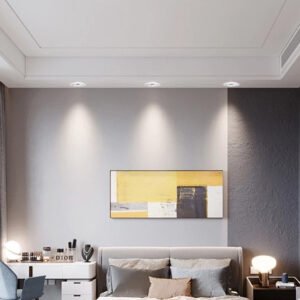

APPLICATION
- Living rooms
- Bedrooms
- Dining areas
- Retail stores
- Art galleries
- Restaurants and cafés
- Hotels and hospitality spaces
- Showrooms and display areas
COUNTRY-SPECIFIC INFORMATION
The Megaman LED Eyeball Downlight MQTL2048 is designed to operate with Malaysia’s standard 170–240V electrical system, ensuring compatibility with most residential and commercial installations.
LED eyeball downlights are commonly used in Malaysia for interior accent lighting, retail lighting, and modern residential lighting, where adjustable lighting direction is required.
Megaman lighting products are trusted in Malaysia for their quality performance, durability, and energy efficiency.
