PRODUCT DETAILS
PRODUCT DESCRIPTION
- Pure Copper Core DC Motor, Energy-saving & Long-lasting
- High Air Volume & Under 50db Silent Operation
- High Extraction Power & High-RPM performance
- Fireproof Aluminum Louvers, High-temperature protection
- Steel Hybrid Body, Durable and impact-resistant

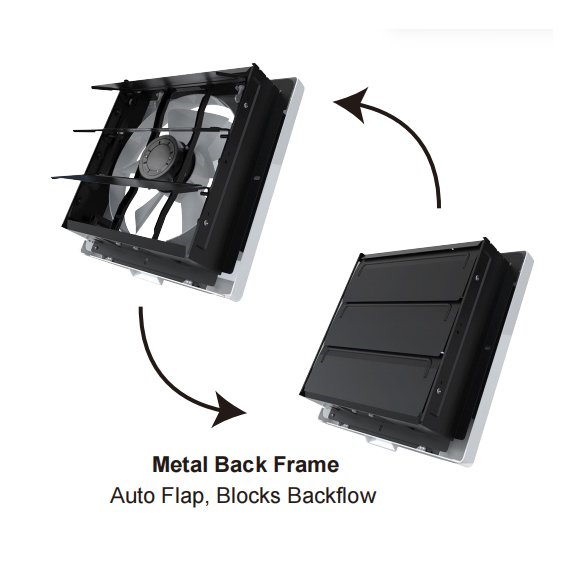

- Integrated Safety Mesh, Added protection and backflow prevention
- With SIRIM certified
Datasheet:- EXHAUST FAN
TECHNICAL DATA
| Electrical parameters | |
| Rated Voltage | 220-240V~ |
| Rated Frequency | 50/60Hz |
| Life Data | |
| Life Time | 35000h |
| Operation Data | |
| Operating Temperature | -10°C~+40°C |
| Other | |
| Noise | 50db |
| Motor Material | Copper |
| Model | Power (W) | Current | Air Volume | Noise |
| YTFSD200V001 | 20W | 0.15A | 320CFM | <50db |
| YTFSD245V001 | 22W | 0.16A | 550CFM | <50db |
| YTFSD295V001 | 22W | 0.16A | 730CFM | <50db |

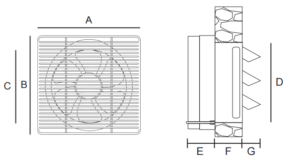

PRODUCT DIMENSION
| YTFSD200V001 | YTFSD245V001 | YTFSD295V001 | |
| A | 290mm | 335mm | 390mm |
| B | 290mm | 335mm | 390mm |
| C | 200mm | 245mm | 295mm |
| D | 245mm | 295mm | 345mm |
| E | 70mm | 75mm | 75mm |
| F | 70mm | 75mm | 85mm |
| G | 70mm | 70mm | 70mm |

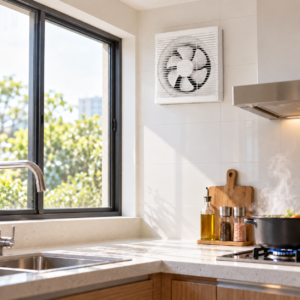

APPLICATION
- Kitchens
- Bathrooms
- Toilets
- Laundry Rooms
- Workshop Spaces
COUNTRY-SPECIFIC INFORMATION
The Megaman Exhaust Fan expands MEGAMAN’s home and electrical product offering beyond lighting by providing a practical solution for indoor ventilation.
For customers already using MEGAMAN products throughout their property, the exhaust fan can form part of a broader home solution covering lighting, electrical accessories and everyday household requirements.
More importantly, customers should select the appropriate Megaman Exhaust Fan according to actual ventilation requirements rather than simply choosing based on appearance.
