PRODUCT DETAILS
PRODUCT DESCRIPTION
- Stretch aluminum bracket, high strength, excellent heat dissipation performance
- Several surface treatment and color optional, beautiful and generous
- Messenger wire installation, simple operation
- Can be continuous stitching, no obvious stitching dark area
- Back-lit, luminous uniform without dark area
- High performance LED Chips, high lumen efficiency and low light decay
- No UV, infrared radiation, no mercury environmental protection
TECHNICAL DATA
| Electrical parameters | |
| Rated Voltage | 220-240VAC |
| Rated Frequency | 50/60Hz |
| Life Data | |
| Life Time | 25000h |
| Switch Times | <12500 |
| Operation Data | |
| IP | IP20 |
| Operating Temperature | -20°C~+40°C |
| Storage Temperature | -20°C~+60°C |
| Mechanical Data | |
| Housing Material | AL |
| Cover Material | PS |
| Other | |
| SDCM | <6 |
| Certification | CB/ROHS |
| Model | Watts (W) | PF | Luminous Flux (lm)
(3000K/ 4000K&6500K) |
Beam Angle | CRI | Dimension (mm) |
| MDL1007N 40W | 40W | 0.9 | 3200 | 120° | ≥80 | 1200*35*66 |
| MDL1007N 60W | 60W | 0.9 | 4800
(4000K &6500K) |
120° | ≥80 | 1200*66*55 |

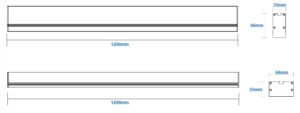

PRODUCT DIMENSION
| Model | L (mm) | W (mm) | H (mm) | Single Box Dimension
(L*W*H)mm |
| MDL1007N 40W | 1200 | 35 | 66 | 1240*80*47 |
| MDL1007N 60W | 1200 | 66 | 55 | 1230*70*70 |

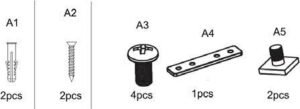

ACCESSORIES OPTIONAL

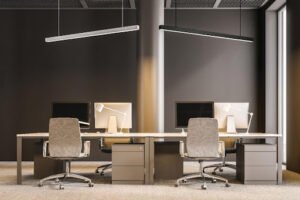

APPLICATION
- Offices
- Conference Rooms
- Schools
- Commercial applications
COUNTRY-SPECIFIC INFORMATION
The Megaman LED Batten Pendant Light MDL1007 is designed for Malaysia’s 220–240V electrical system, making it compatible with most residential and commercial installations.
This lighting fixture is suitable for modern schools, offices and conference rooms in Malaysia where both functionality and aesthetic lighting are required.
Megaman lighting products are widely used across Malaysia due to their reliable performance and energy-efficient LED technology.
